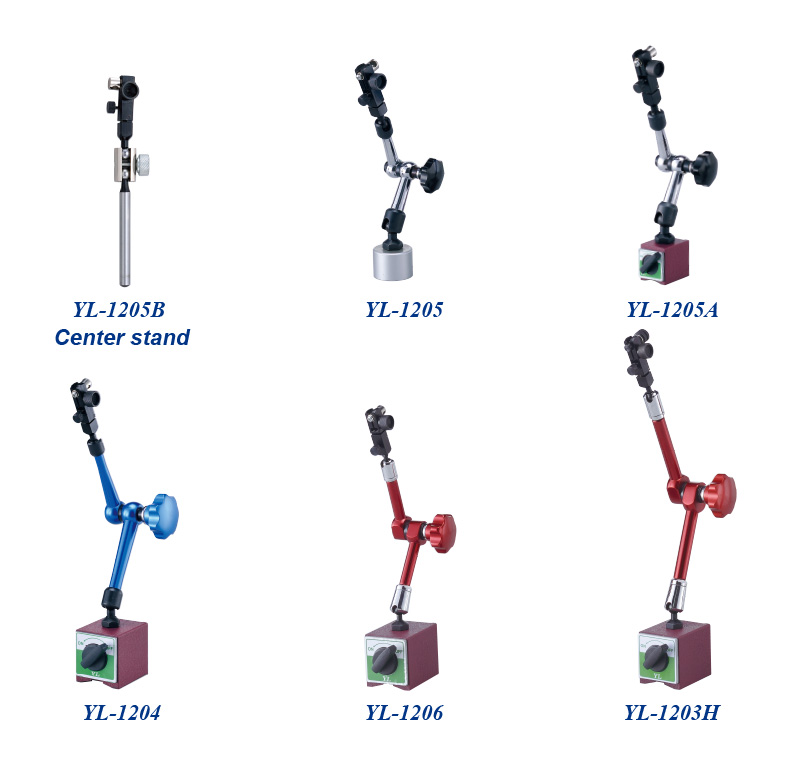

UNIVERSAL ARM MAGNETIC BASE (Mechanical Arm)

Universal Arm Magnetic Base for indicators, it can be set at any point in 360˚, very quick and convenient for operation.

Model No.	Holding Power	Arm Length	Base Dimension (mm)			N.W.(kg)
Model No.	Holding Power	Arm Length	L	W	H	N.W.(kg)
YL-1205B	-	-	ø10 x 180 L			0.14
YL-1205	20 kg	185 mm	ø38 x 27			0.5
YL-1205A	20 kg	185 mm	35	30	35	0.4
YL-1204	80 kg	285 mm	60	50	55	1.3
YL-1206	80 kg	240 mm	60	50	55	1.3
YL-1203H	80 kg	330 mm	60	50	55	1.5
